Product Features：
1. Smart function
Automatic, remote control, manual driving, automatic operation, reducing operation intensity; automatic recording of operation data, segmented control of nozzle switch; automatic spray start and stop, boom extension, lift; no spraying in the area that has been sprayed, and no spraying outside the land boundary, save pesticides

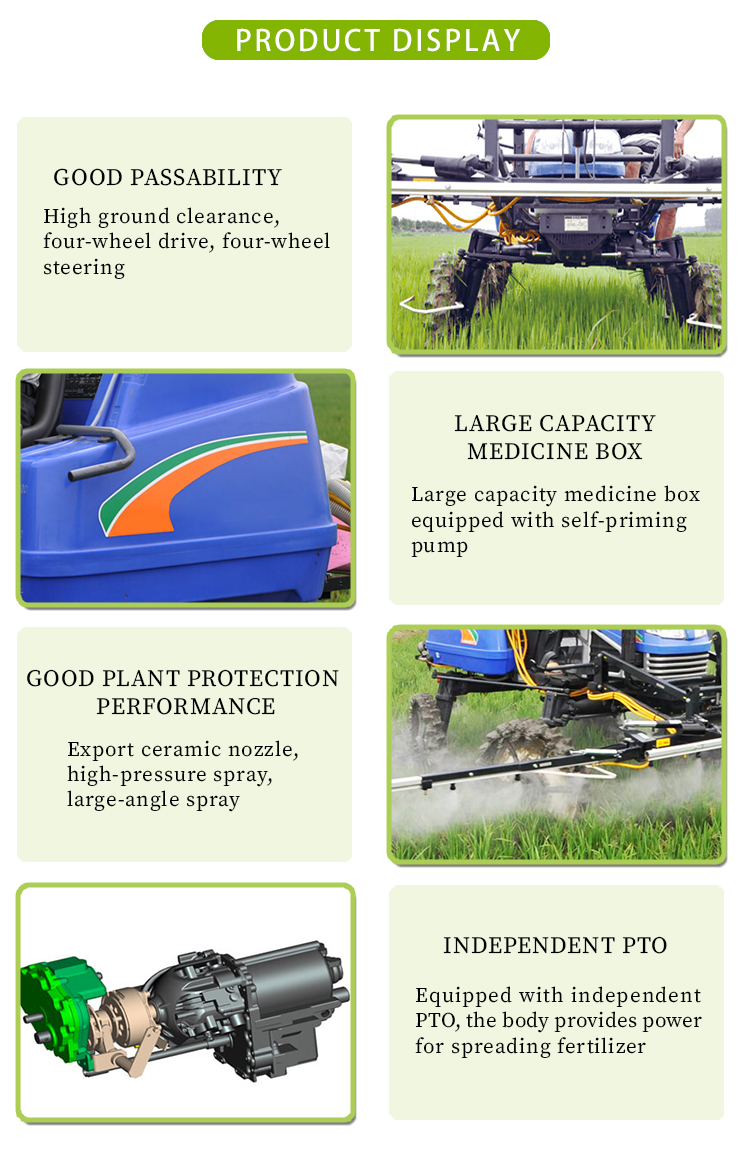

2. Good passability
high ground clearance, four-wheel drive, four-wheel steering
3. Good plant protection performance
Imported ceramic nozzle, high pressure spray, large angle spray
4. One machine for two purposes
Plant protection and fertilization are both correct
5. Independent PTO
Equipped with independent PTO, the body provides fertilizer spreading power
6. Large capacity medicine box
Large-capacity medicine tank with self-priming pump
7. Safety Cab
Safety cab with wiper for higher safety
8. Easy to operate
Operation buttons, switches, pressure adjustment handles, etc. are all near the operator seat, which is easy to operate
Technical Parameters
| Product model | JKB22C-S5TXBME18 | |

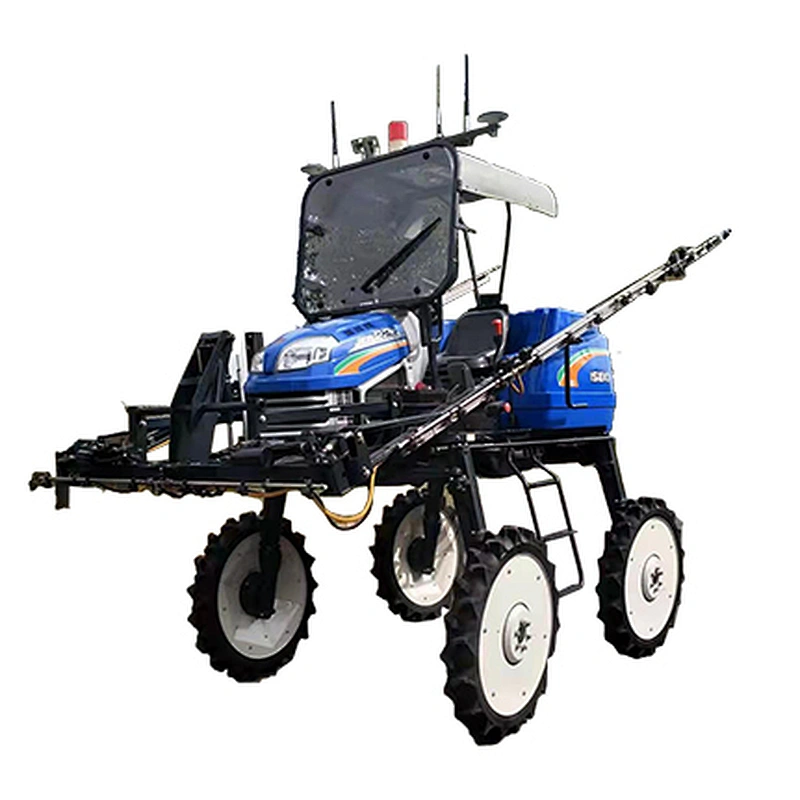

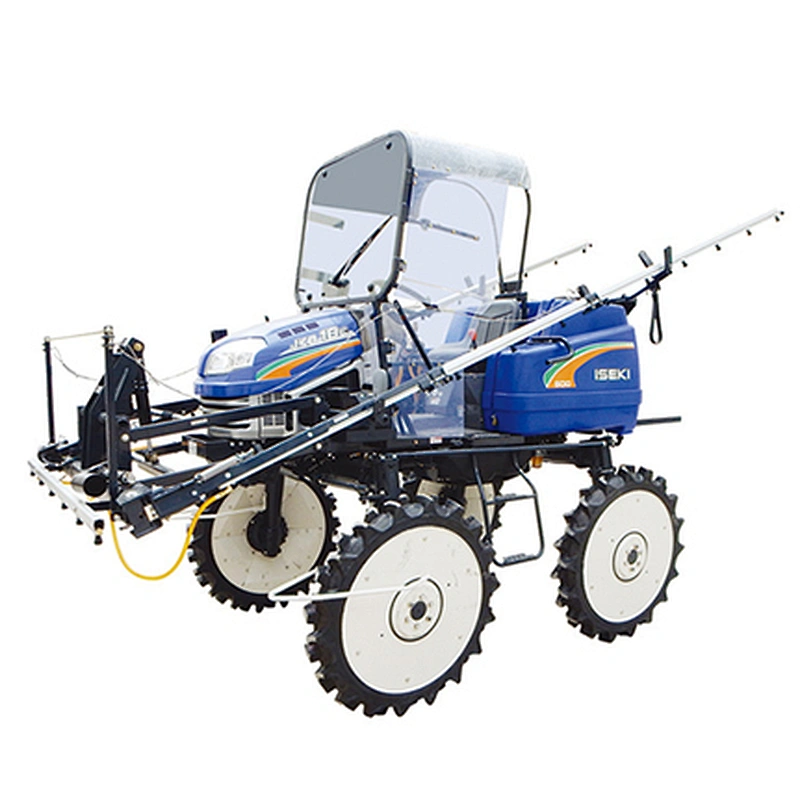

| product name | Self-propelled boom sprayer | |
| Drive type | 4WD | |
| Machine Size | L*W*H（mm) | 4030*1940*2755 |
| Minimum ground clearance (mm) | 1065 | |
| Motor | model | E3112-J06 |
| name | Vertical water-cooled 4-stroke 3-cylinder diesel engine | |
| Total displacement (L) | 1.123 | |
| Rated power/speed (kW{PS}/(r/min) | 16.3{22.2}/2600 | |
| Walking part | Wheelbase (mm) | 1500 |
| Variable speed method | HST, time-sharing occlusion (combined use) | |
| Spray Department | Liquid tank volume (L) | 500 |
| Spray width (mm) | 11500 | |
| Spray height range (mm) | 660～1660 | |
| Equipped with a power type of fertilizer spreader | Powered by independent PTO of the body | |
| Fertilizer placing device on side of fertilizer spreader | Yes | |
| Maximum operating efficiency (mu/hour) | 30～55 | |
| Model of fertilizer spreader | CFC300 | |
| Fertilizer tank capacity (L) | 300 | |
| Working width (m) | 12 | |
| Other configuration | Other configuration | Yes |
| Ultra low speed | Yes | |
| Comes with PTO output shaft | Yes | |
| Wiper | Yes | |
| Simple cab | Yes | |
Exhibition
Certifications
FAQ
1. What's the MOQ?
MOQ is 1 set. but for your reference, one 40HQ can load 2 sets, that will save you a lot of sea freight.
2.What's the after sales?
Our products' warranty is for 12 months. after that, we can still supply technical support and original spare parts.
3. What's your lead time?
usually within 20 work days.
4.Are you interested in dealership with local company?
Yes, we are quite interested in this business. We'd like to cooperate with some local partner to sell more machines in local market and supply better service.
5. What's your Payment terms? 50% payment in advance by TT, 50% balance before delivery.
