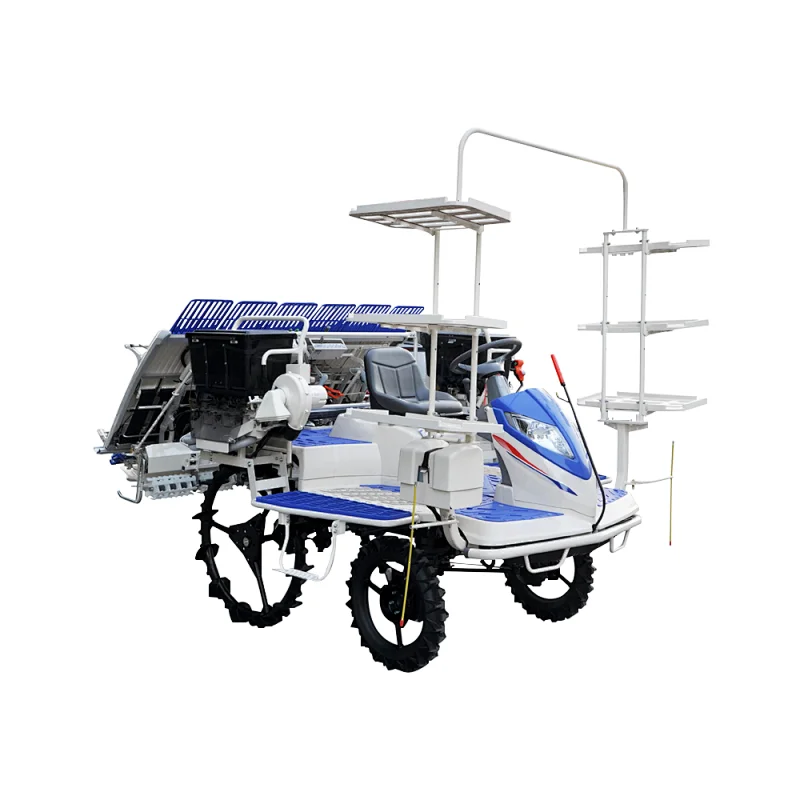

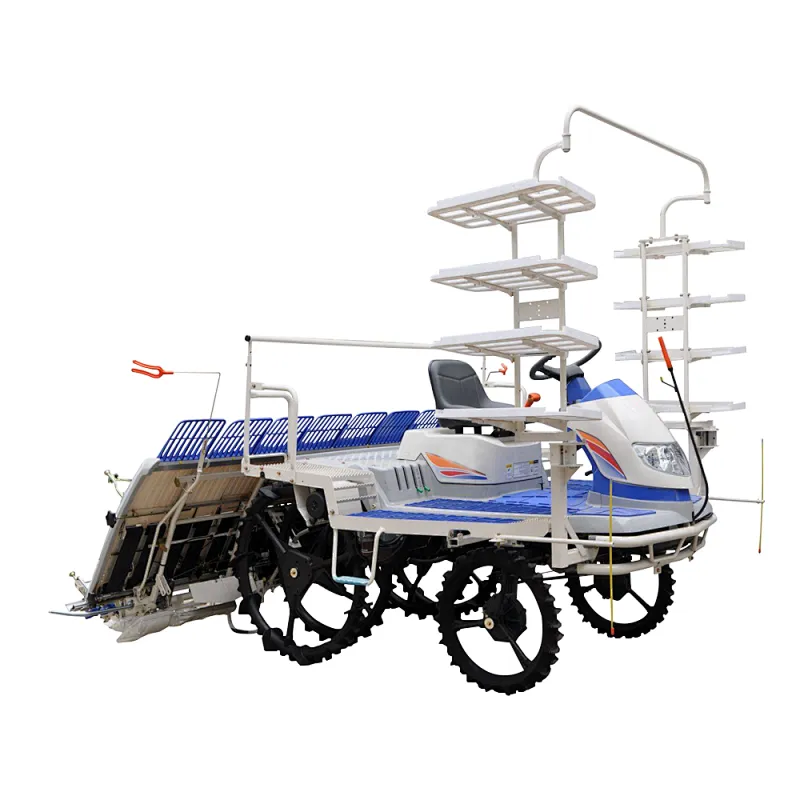

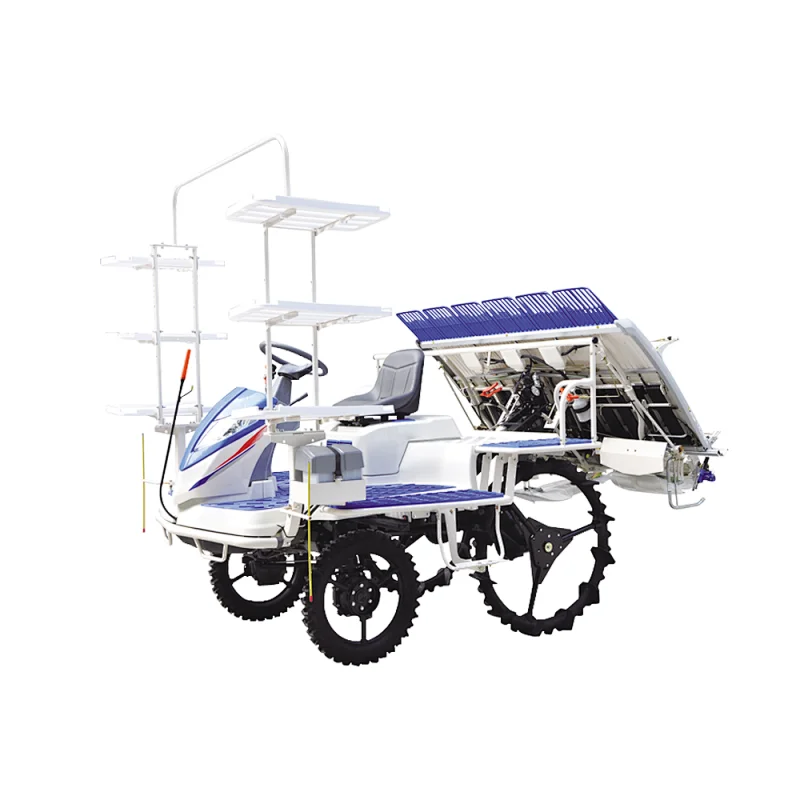

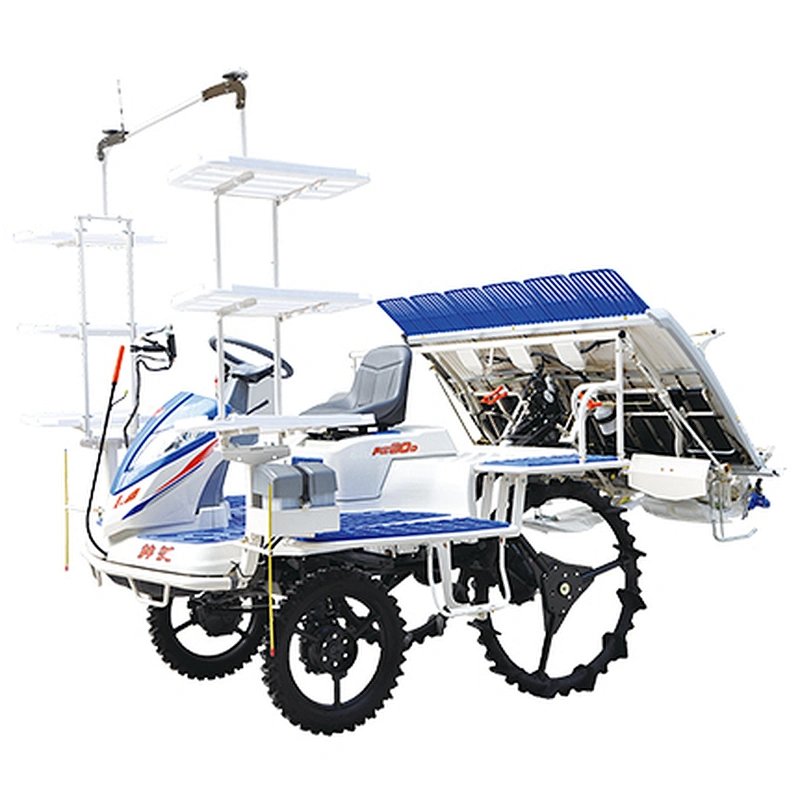

High-speed Intelligent Rice Transplanter

Model NO.
PZ60-AHDR
Quantity:
Product Features Of The PZ60-AHDR Rice Transplanter:
1. Smart function
Automatic driving, automatic operation, saving labor; can automatically start and stop the clutch to adjust the height of the planting section; simulate the optimal manual operation path, zero pressure seedlings
2. Automatic level control
The more advanced automatic level control function of the transplanting department is more in line with the scientific transplanting of rice
3. Good passability
Front wheel independent shock absorption, high ground clearance, equipped with ultra-low gear, better passability in wet and rotten fields
4. Self-made engine, mid-engine engine
Self-made 21 horsepower engine, strong power, stable and reliable, unique engine mid-mounted technology, good safety
5. Enlarge and widen the visibility pedal
2.99 square meters, enlarged and widened visibility pedal, which can not only monitor the path, but also place more seedlings

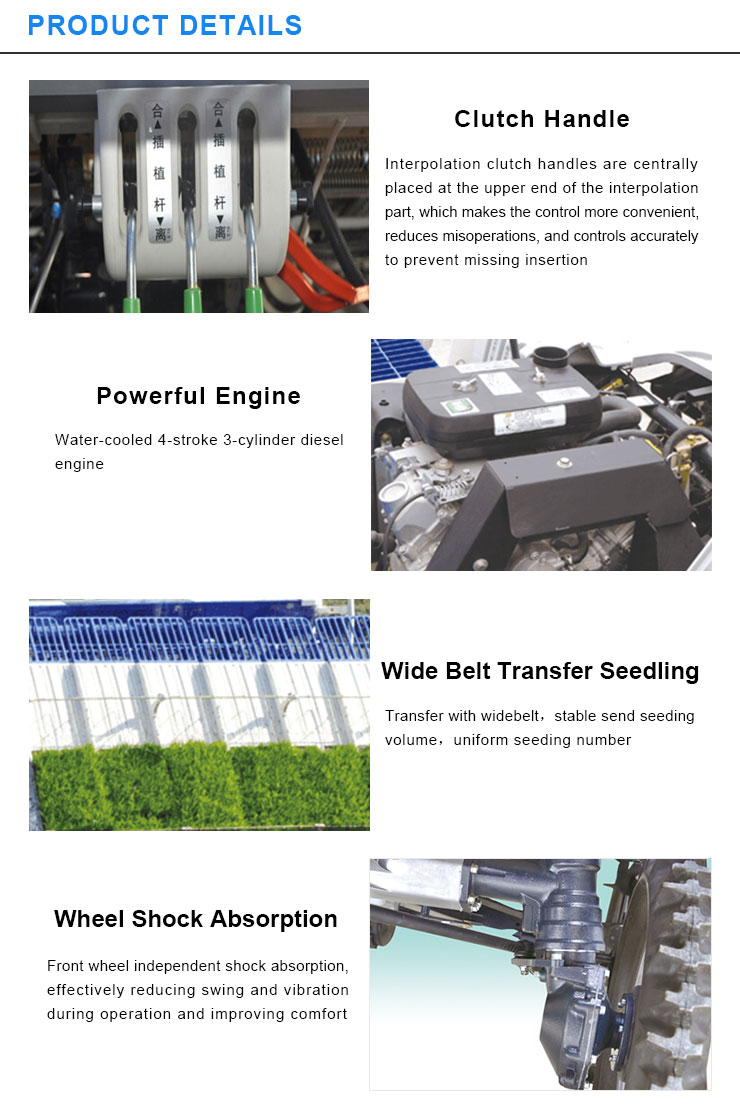

6. Planting clutch handle focus
The planting clutch handle is concentrated, the control performance is good, and the misoperation is reduced

Technical Parameter Of The PZ60-AHDR Rice Transplanter:
Product modelPZ60-AHDR
Machine SizeL*W*H (mm)3174×2235×2455
Min Ground Clearance (mm)440
Weight (kg)795
MotorModelE3112-UP08
Structural styleWater-cooled 4-stroke 3-cylinder diesel engine
Total displacement (L)1.123
Rated power/Revolving speed KW﹛ps﹜/(r/min)15.3(20.8)/2500
Travel SectionWheelWheel base (mm)1180/1220
Axle base (mm)1100
Number of gear (shift)Forward 3, backward 3 (walking, transplanting, low speed)
Operating speed (m/s)/(km/h)0~1.82
speed(m/s)/(km/h)0~4.02
Transplanting SectionPlanting wayrotation type
Planting rows (rows)6
Planting spaced (mm)300
The planting hole distance (mm)250、220、180、170、160、150、130、110
PC versionNo
Z rotationNo
Multi-function handleNo
Working hour productivity (mu/hour)6~12
