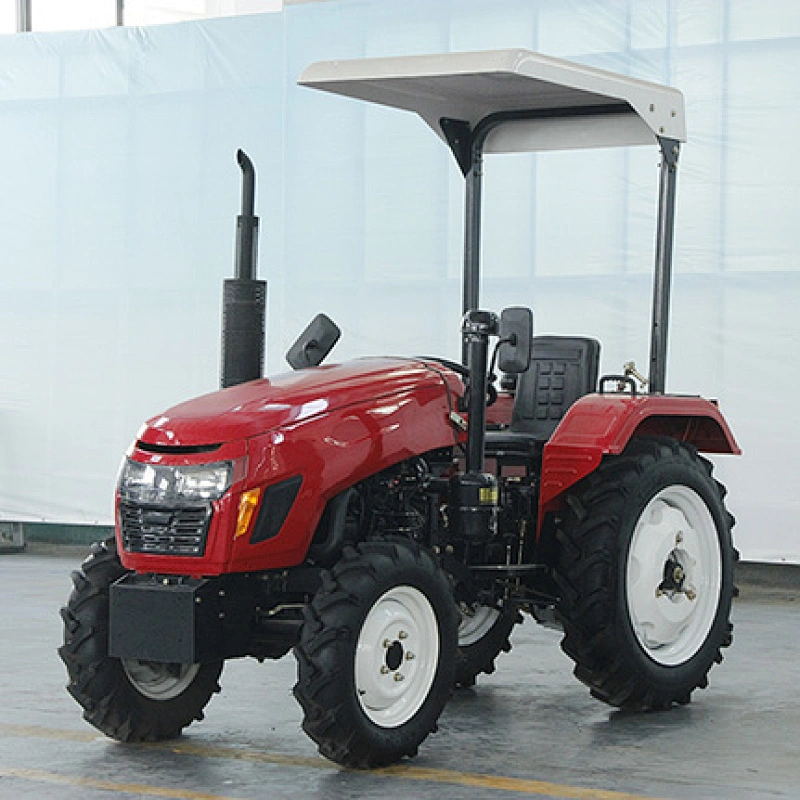

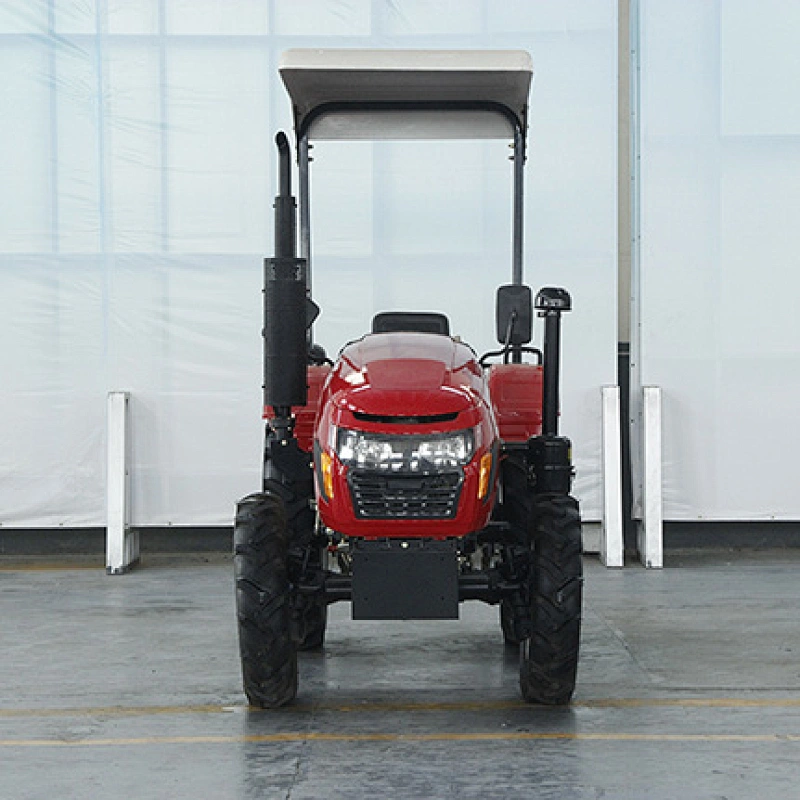

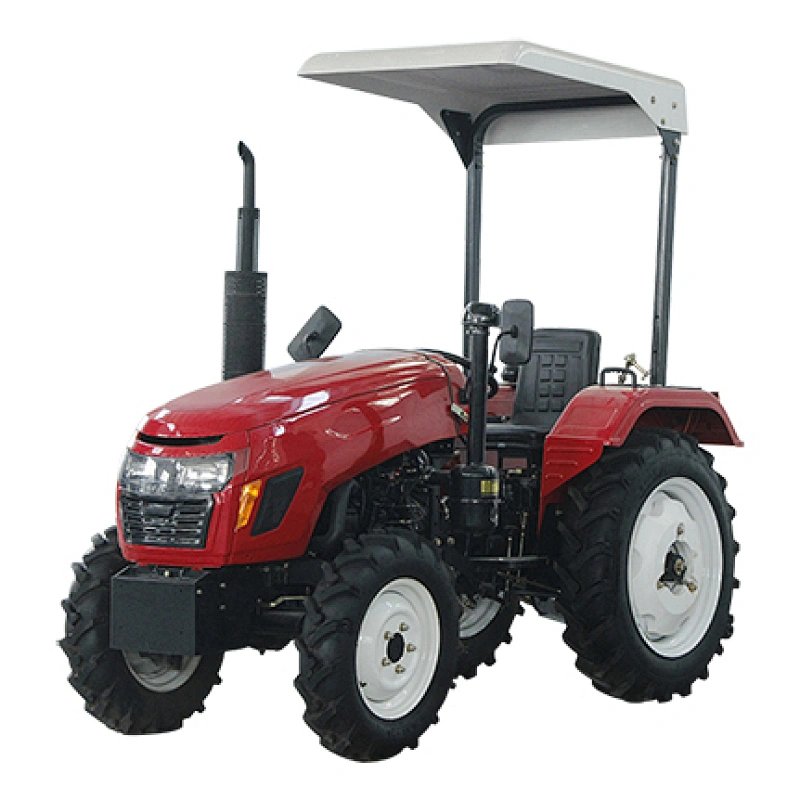

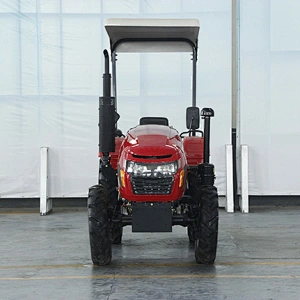

25.8KW Four-wheel Drive Mini Wheel Tractor

Model NO.
MF354
Quantity:
This mini tractor adopts four-wheel drive, and the front and rear tires are equipped with herringbone tires, which have the characteristics of good adhesion and large traction, and are suitable for flat terrain.
Hydraulic steering device, flexible and convenient operation, reduce the labor intensity of the driver.
Product Parameters:
MODELUNITTT354
IMENSIONS OF TRACTORTYPE/DRIVE TYPE (4×4)
kWkW25.8
DIMENSION (L×W×H)mm3300×1200×2255
WHEEL BASEmm1820
MIN.GROUND CLEARANCE mm300,330
WEIGHTkg1386
TREADmmFRONT TREAD:1000(1000~1300)ADJUSTABLE
REA   TREAD:1000(1000~1300)ADJUSTABLE
MATCHED POWER  CLUTH TYPE/DRY-TYPE,SINGLE-ACTING
ENGINE/Ⅲ)YANGDONG 4 CYLINDER(25HP 3 CYLINDER)
RATED SPEED r/min2400
WORKING PORTINGGEAR /8F+2R(OPTION:8F+8R)
PTO TYPE/6 PIN,Φ35,ⅠTYPE(OPTION: 8 PIN)
PTO RATED POWERkW≥22.0
PTO SPEEDr/minOPTIONAL540/720)
HYDRUALIC SYSTEM  THREE POINT LINKAGE/REAR, THREE-POINT SUSPENSION ,CAT1
HYDRUALIC OUTPUT/SIMPLE OUTPUT
HYDRUALIC ADJUSTMENT MODE/FORCED HYDRUALIC SIYSTEM, POSITION CONTROL ,FLOATING CONTROL (OPTIONAL:FORCED HYDRUAL SYSTEM, POSITION CONTRL, FLOATING CONTRO)
MAX.LIFTING FORCE AT FRAME CENTER kN≥5.9
TYRE TYPE 标准轮胎型号(前/后)
NORM TYRE SIZE (FRONT/ TEAR)
/7.50-16/11.2-24
OPTIONAL TYRE (Ⅰ)6.50-16/9.50-24
OTHER OPTIONSSTEAM BRAKE/OPTIONAL
