Product Features Of ENZ80-AHDRT25 High Speed Transplanter：
1. Smart function
Automatic driving, automatic operation, saving labor; can automatically start and stop the clutch to adjust the height of the planting section; simulate the optimal manual operation path, zero pressure seedlings
2. Automatic level control
The more advanced automatic level control function of the transplanting department is more in line with the scientific transplanting of rice

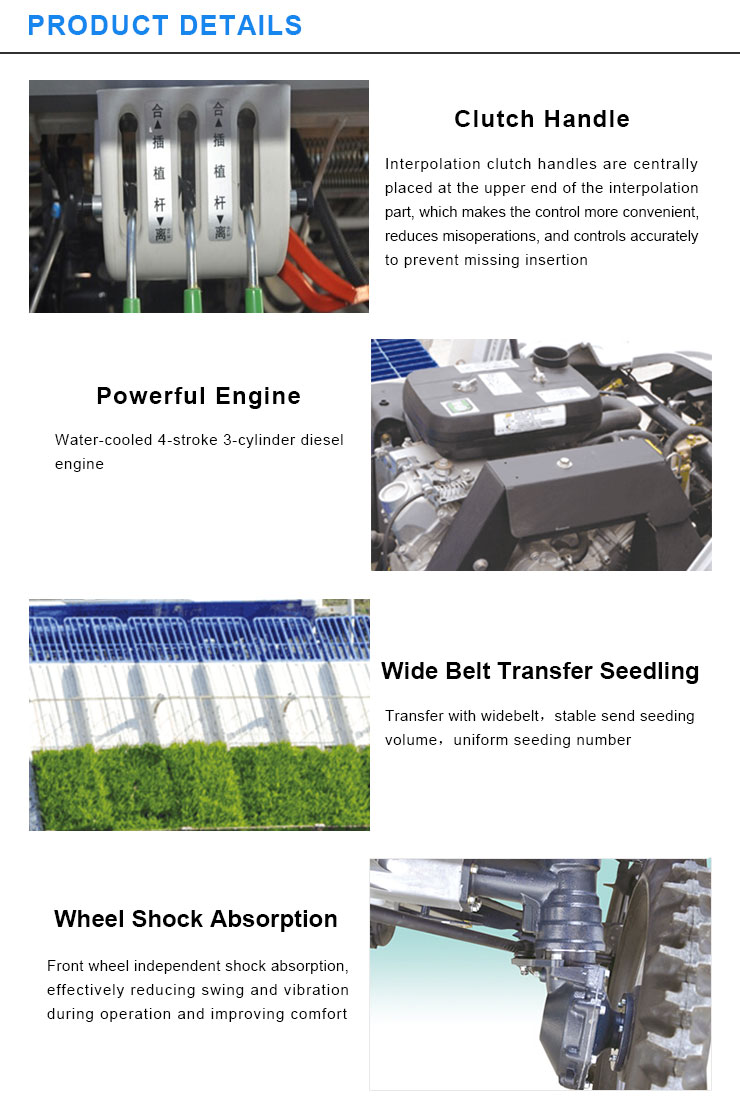

3. Multi-function operating handle
One handle can control the up and down of the planting part, the clutch of the planting clutch, and the slight descent of the planting part, and the operation is simple and convenient
4. Good passability
Front wheel independent shock absorption, high ground clearance, equipped with ultra-low gear, better passability in wet and rotten fields
5. High-horsepower engine, mid-mounted setting
High-horsepower engine, strong power, unique engine mid-mounted technology, it is not easy to enter the water in the lower field, and the safety is better
6. Tear seedling needles
Unique tearing seedling needle, wear-resistant and reliable, does not damage the seedlings, and quickly turns green and divides the medicine
Technical Parameter:
Exhibition
Certifications
1. Smart function
Automatic driving, automatic operation, saving labor; can automatically start and stop the clutch to adjust the height of the planting section; simulate the optimal manual operation path, zero pressure seedlings
2. Automatic level control
The more advanced automatic level control function of the transplanting department is more in line with the scientific transplanting of rice
3. Multi-function operating handle
One handle can control the up and down of the planting part, the clutch of the planting clutch, and the slight descent of the planting part, and the operation is simple and convenient
4. Good passability
Front wheel independent shock absorption, high ground clearance, equipped with ultra-low gear, better passability in wet and rotten fields
5. High-horsepower engine, mid-mounted setting
High-horsepower engine, strong power, unique engine mid-mounted technology, it is not easy to enter the water in the lower field, and the safety is better
6. Tear seedling needles
Unique tearing seedling needle, wear-resistant and reliable, does not damage the seedlings, and quickly turns green and divides the medicine
Technical Parameter:
| Product model | ENZ80-AHDRT25 | |
| Machine Size | L*W*H （mm) | 3174×2370×2455 |
| Min Ground Clearance （mm) | 440 | |
| Weight （kg） | 863 | |
| Motor | Model | 3C1104 Yuchai engine |
| Structural style | Water-cooled 3-cylinder 4-stroke diesel engine | |
| Rated power/Revolving speed KW﹛ps﹜/（r/min） | 16.3（22.2）/2600 | |
| Travel Section | Number of gear （shift） | Forward 3, backward 3 (walking, transplanting, low speed) |
| Working speed （m/s)/(km/h) | 1.66/6.00 | |
| Transplanting Section | Planting way | rotation type |
| Planting rows （rows） | 8 | |
| Planting spaced （mm) | 250 | |
| The planting hole distance （mm) | 250、220、180、170、160、150、130、110 | |
| Working hour productivity (mu/hour) | 6～12 | |
Exhibition
Certifications
